The selection is stored in memory within the onboard controller so every time vehicle is started, the same pattern is used. Selection is performed while panel is powered up so user can observe each pattern until the desired pattern is determined.
Each press of the switch steps panel through each of the available patterns. If sequential lighting patterns are desired, then the attached pink wire must be wired to +12 volt ignition power.Ī push button switch on the back or front of the light panel is used to select from any of the pre-programmed sequential patterns. The simple installation requires a quick mounting of the LED lighting panel to the tail light housing or lens, depending on application and plugging in the wired bulb plug(s) into the factory bulb socket(s). Standard Flash Mode: Flashes all LED's in all panels together with the flasher relay or solid light with brake, mimics light bulb operationĭemonstration Mode: Steps through each sequential pattern cyclically, flashes each sequence 6 times before stepping to the next sequence, then repeats Tail Light Operational Functions: Turn Signal Light, Brake Light, Running Light and Emergency Flash (not including demonstration and standard flash modes) Number of Sequential Patterns: 8 > Industry First << For LED lighting to function properly, a Low Current Flasher Module must be installed in place of the traditional turn signal flasher module. The kit is designed to work with OEM tail light housing and lenses as well as aftermarket components. There is no separate sequential lighting control module to mount and wire up. In addition, the kit includes a self-contained microprocessor and circuitry to enable a multitude of sequential lighting patterns. This includes low level running light illumination, brake light illumination, turn signal illumination, emergency flash and back-up lighting where applicable. The kits replace all the functionality of the light bulbs they replace.

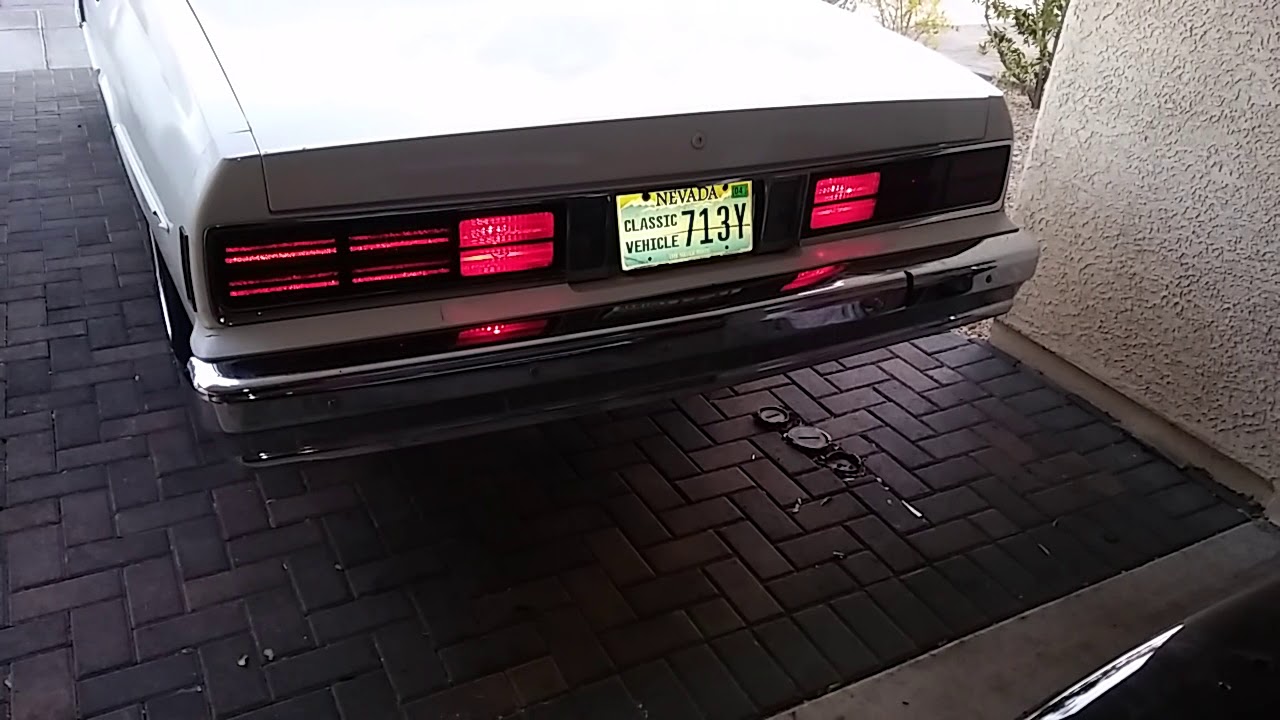

These kits incorporate high efficiency LED lights that increase tail light brightness, reliability and longevity. The Classic Sequential Tail Light (CST) kits are direct retrofit and replacement for incandescent light bulbs in classic vehicles.
